| PC STRAND |
| |

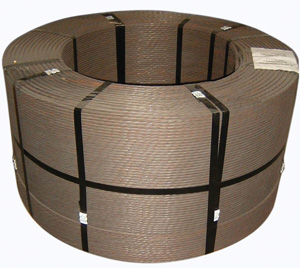

Low Relaxation High Strength Pre-stressed Concrete Strand |
|
| |
ASTM A416/A416M-2002 |
|
| |
 |
|
| |
Nominal
Diameter |
Min. Breaking
Load |
Yield Strength |
Unit Weight |
Cross Section |
| inch |
lb |
lb |
lb/1000' |
square inch |
| 0.375 |
23000 |
20700 |
290 |
0.085 |
| 0.438 |
31000 |
27900 |
390 |
0.115 |
| 0.5 |
41300 |
37170 |
520 |
0.153 |
| 0.6 |
58600 |
52740 |
740 |
0.217 |
|
|
| |
|
|
| |
| Tensile Strength: |
Grade 270 (1860 Mpa) |
| Tolerance: |
-0.006" / + 0.025" |
| Lay Length: |
12-16 x Diameter |
| Lay Sirection: |
LHL or RHL |
| Min. Elongation: |
3.50% |
| Modulus of Elasticity: |
195 + / -10 GPa |
| Max.Relaxation: |
2.5% (1000lb, 70Fb) |
| |
|
|
|
| |
PC Strand of Britain, China and other standards are also available.
Detailed specification will be provided upon request. |
|
